Product Description

Here for sale is off grid solar home system kit consist of 150W mono solar panel, 20A LCD solar charger controller and a whole set solar panel ABS plastic mounting bracket. We provide some panels for your reference. Those are hot items in ECO-WORTHY. With its high power output and perfect design for a solar system. Even on cloudy days, the panel still delivers a high power energy. The panel is covered with a special glass to protect against the bad environmental conditions suck as hail, snow and ice. And the panel frame is made of anodized aluminum to make the panel stability and durable.

For the solar panel mounting brackets. It is made of ABS plastic material. It is durable, stable and light. Easy for you to carry them and install for your RV motor home.

Package Include:

1 pc 150W Mono Solar Panel

1 pc 20A Solar Controller

1 pair 5m Solar Cable

1 set solar panel mounting brackets（Z style)

Specification:

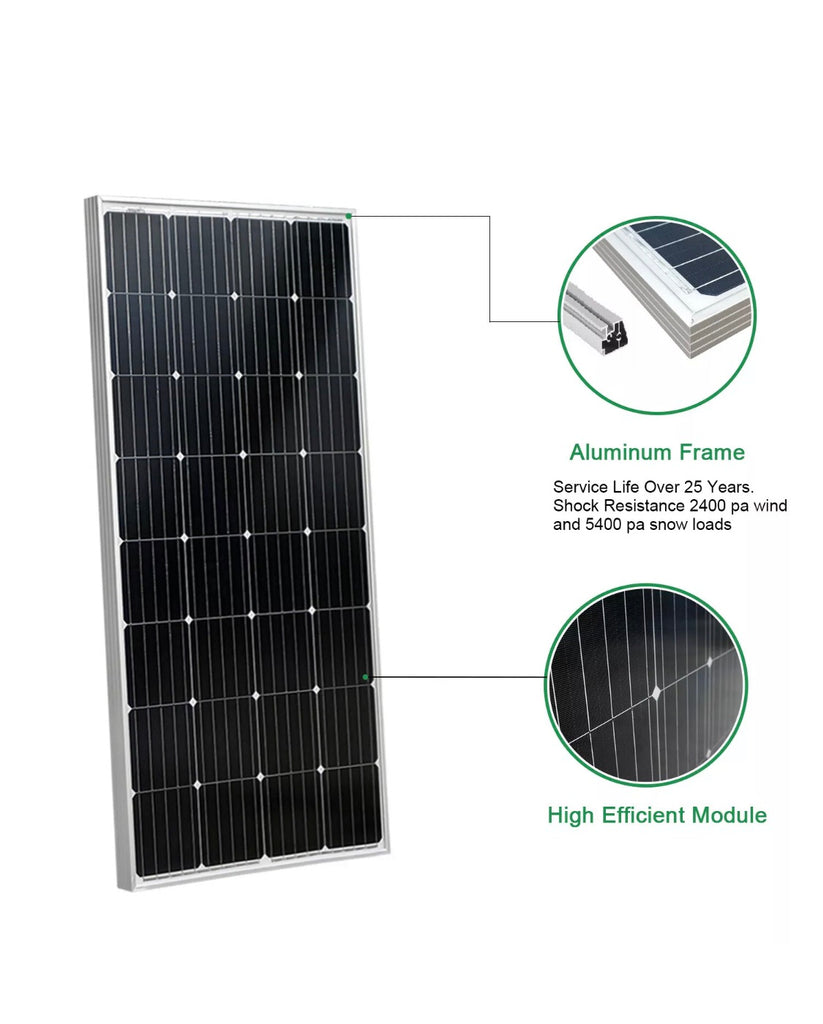

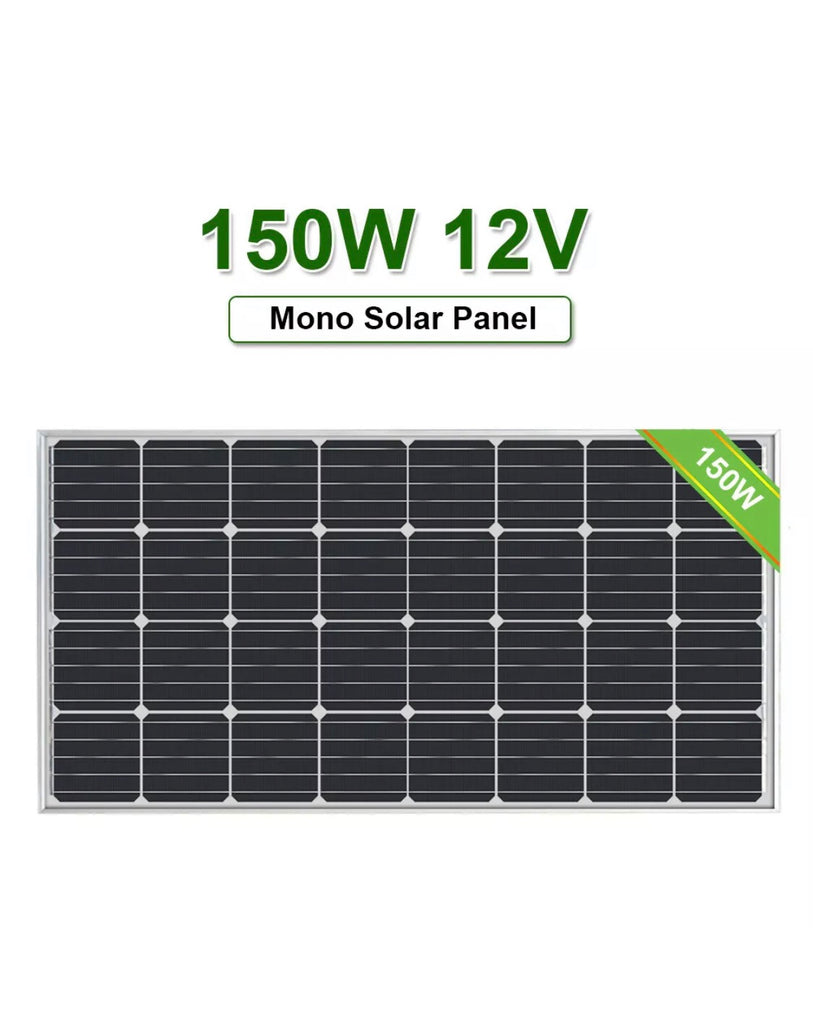

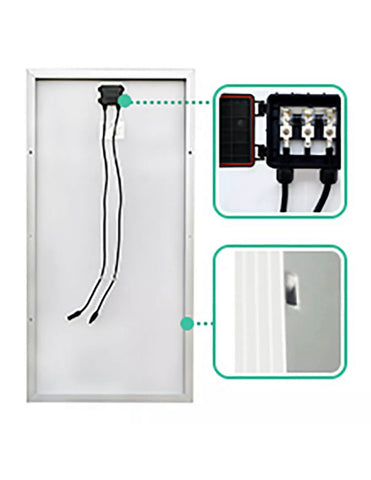

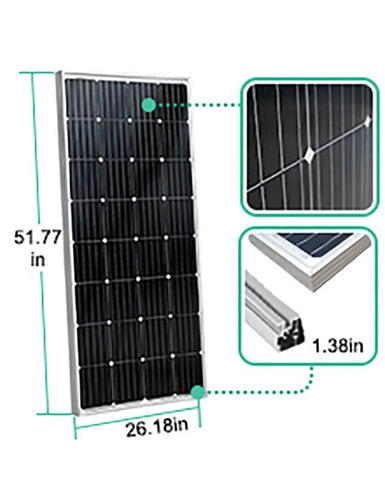

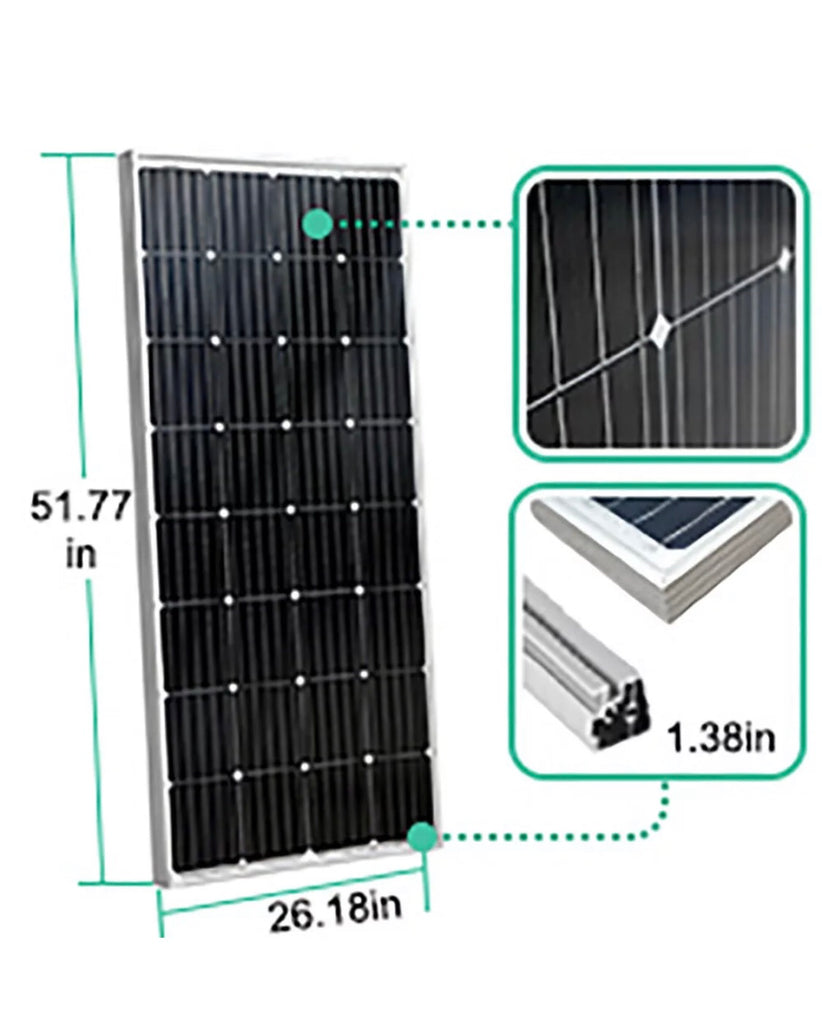

150W Mono Solar Panel

Type	150W Mono Panel
Rated power	150W
Maximum/Peak Voltage(Vmp)	16.6V
Open Circuit Voltage(Voc)	20.3V
Maximum/Peak Current(Imp)	9.04A
Short circuit current (Isc)	9.61A
Output Tolerance	±3%
Temperate coefficient of Isc	(010+/- 0.01 ) %/℃
Temperate coefficient of Voc	- (0.38 +/-0.01 ) %/℃
Temperate coefficient of power Voc	-0.47%/℃
Temperature range	-40℃to +80℃
Frame	Heavy duty aluminum
Kind of glass and its thickness	Low Iron, high transparency tempered glass of 3.2mm
Size	131566535mm

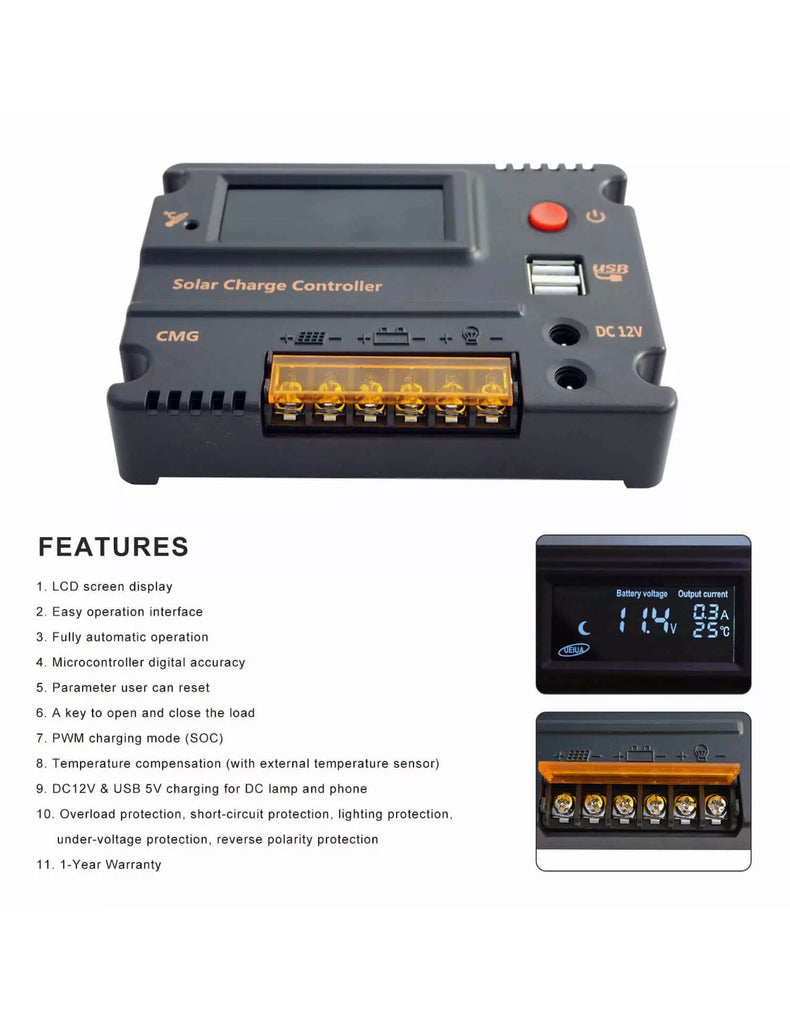

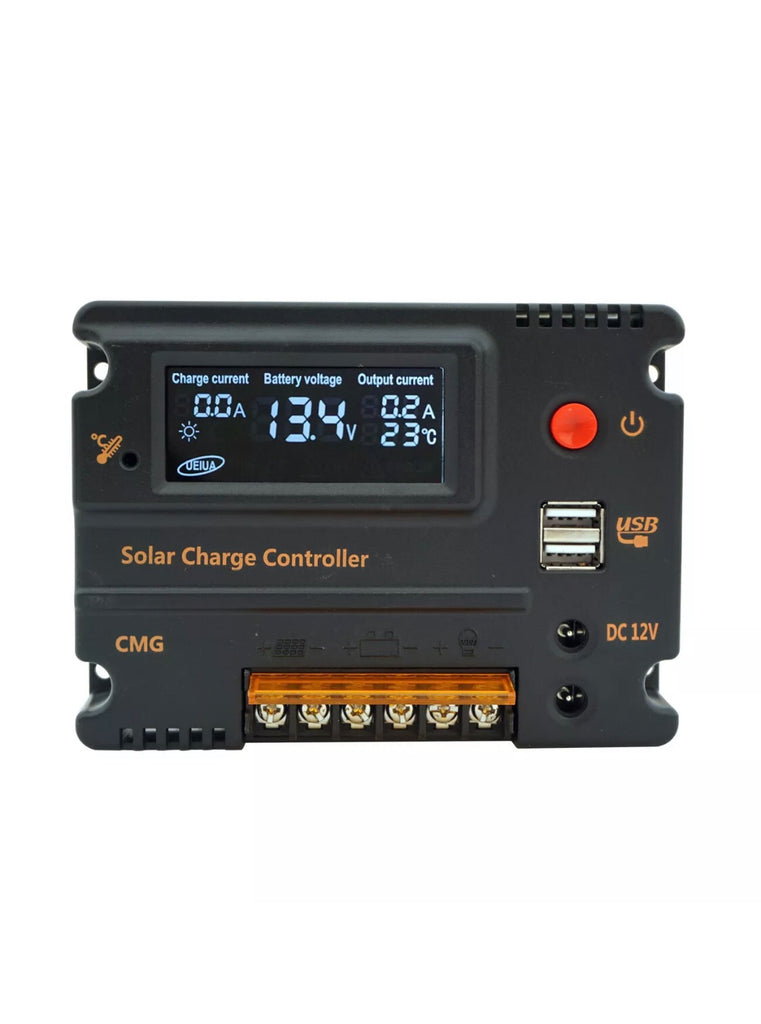

20A LCD Solar Charge Controller

PRODUCT FEATURES PRODUCT FEATURES

Easy operation interface
Fully automatic operation
Microcontroller digital accuracy
Parameter user can reset
A key to open and close the load
PWM charging mode (SOC)
Temperature compensation (with external temperature sensor)

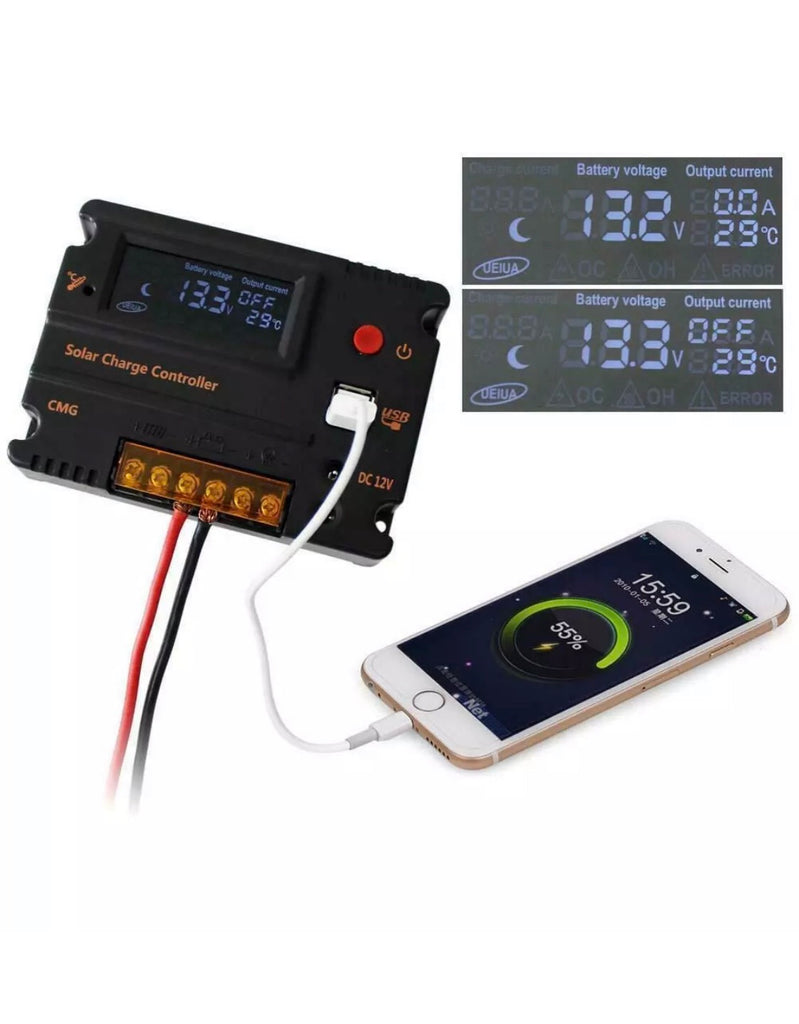

DC12V & USB 5V charging for DC lamp and phone

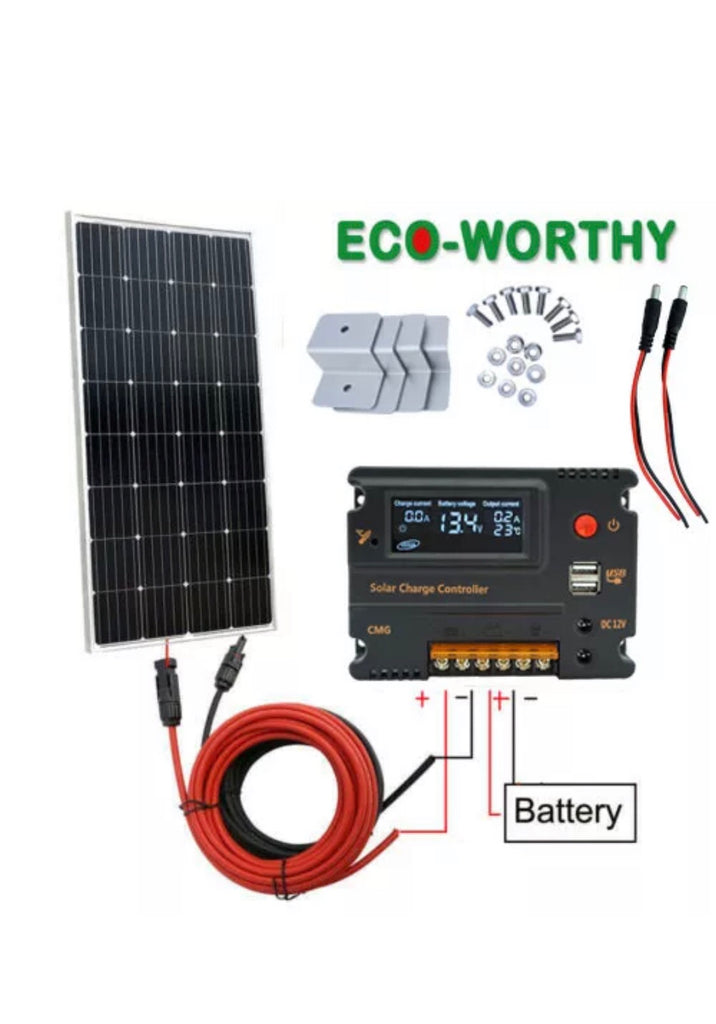

SYSTEM CONNECTION SYSTEM CONNECTION
1.Connect the battery to the charge regulator - plus and minus.
2.Connect the solar panel to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
The reverse order applies when de-installing!
An improper sequence order can damage the controller!

Model	CMG-2420
Rated Charge Current	20A
Rated Discharge Current	20A
USB Output Voltage	5V
Total USB Output Current	3A
DC Output Voltage	12V
Total DC Output Current	2A
Short Circuit Recovery Time	10S
Open Circuit Voltage of Solar Panel	40V
No load loss	0.05W
Discharge Recovery Voltage	12V	24V
Over Voltage Protection	15V	30V
Float Charge Voltage	14V	28V
Over Discharge Voltage	10.5V	21V
Control Mode	Software intelligent control
Working Temperature	-35℃~+55℃LCD screen displayLCD screen display

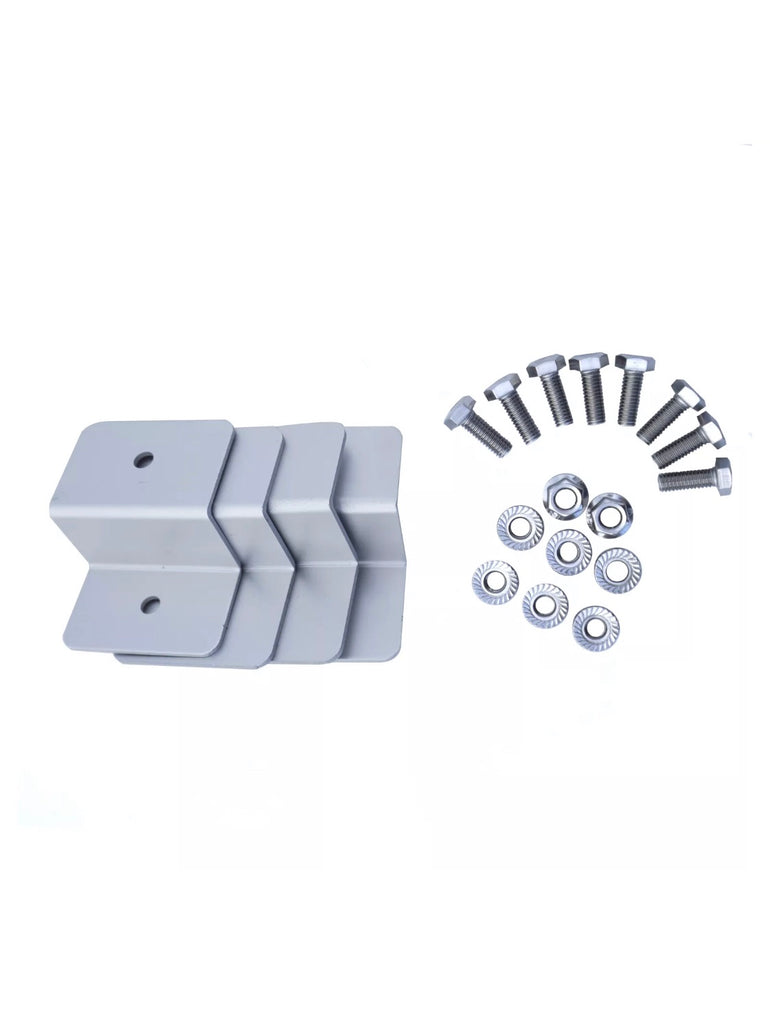

1 set solar panel mounting brackets

There are Four to a set, Z style

Perfect for most framed solar panels,these brackets can be bolted to the rear of most framed solar panels allowing the solar panel to be easily attached to a flat surface. Ideal for caravans, home roof ,boat...ect.

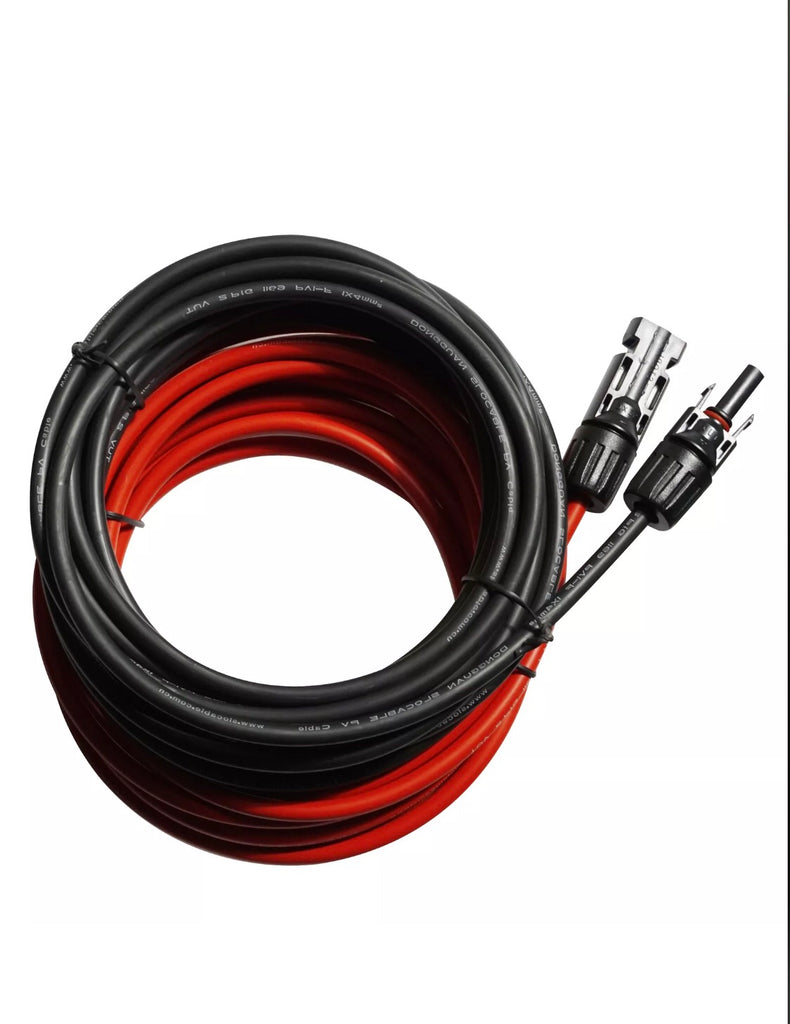

1 pair MC4 with 5 meter 4mm²extension solar cable(5m red and 5m black)

For movable, suspended or fixed installation in photovoltaic systems at
