50w Solar Panel Kit + 10A PWM Charger Controller + 4m Cable fuse & Clips 12v Battery
5 Great reasons to buy from us:

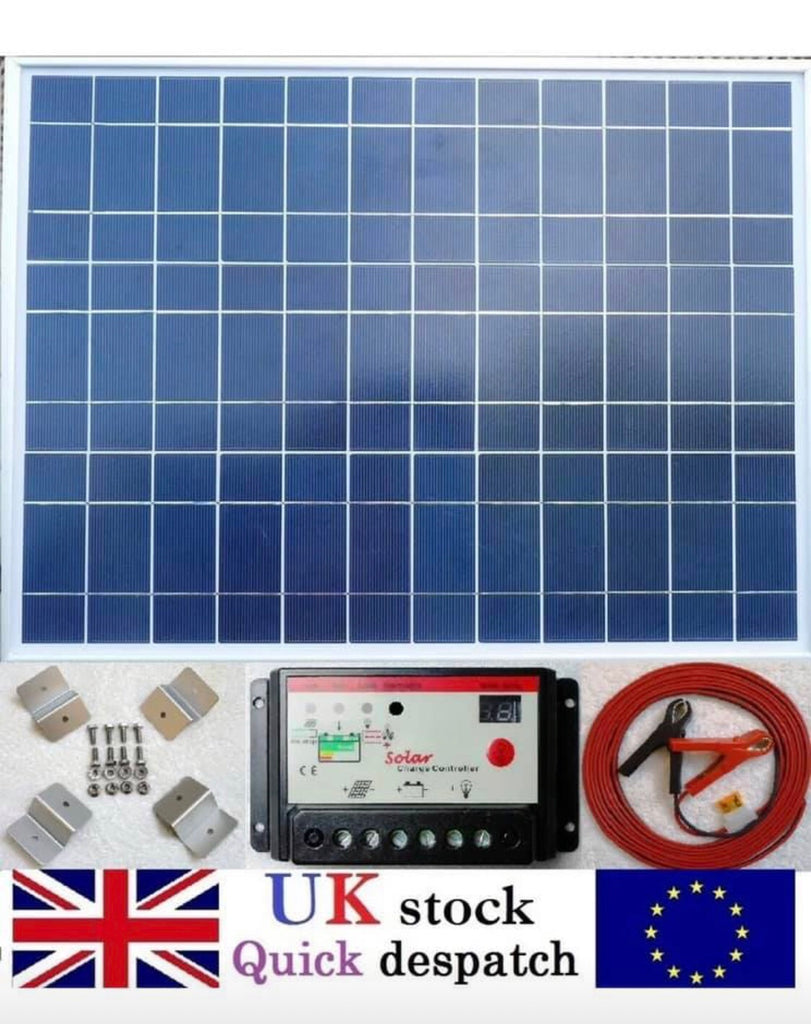

50w Solar Panel c/w 90cm cable attached + 10A PWM Charger Controller + 4m Cables c/w fuse and large battery alligator clipsfor 12v Battery + Optional Aluminium alloy strong mounting set of 4
The 50w panel+controller+cable set listing include:
1 x 50w fully sealed Weatherproof and maintenance-free solar panel c/w 90cm cable attached for permanent outdoor use. Whenever there's sunlight, it will silently generate free electricity for years and years.

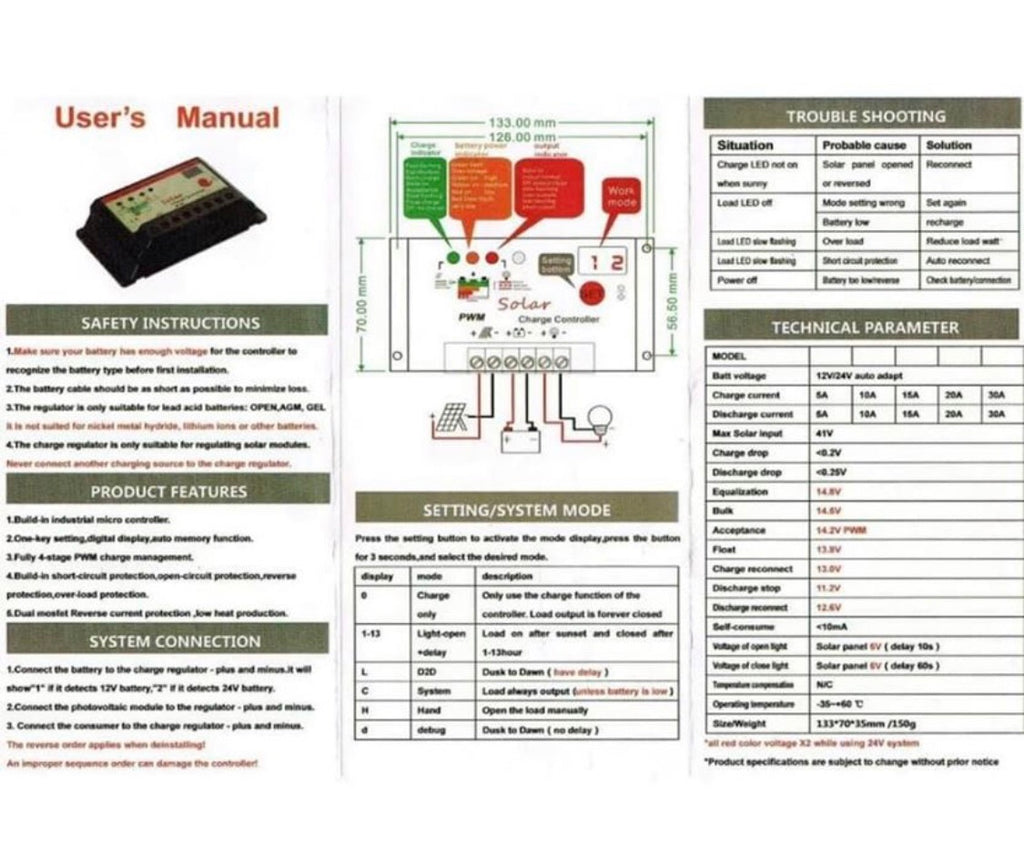

1 x 10A PWM 12v/24v charge (need 2 panels for 24v system) controller comes with a detailed English user manual.

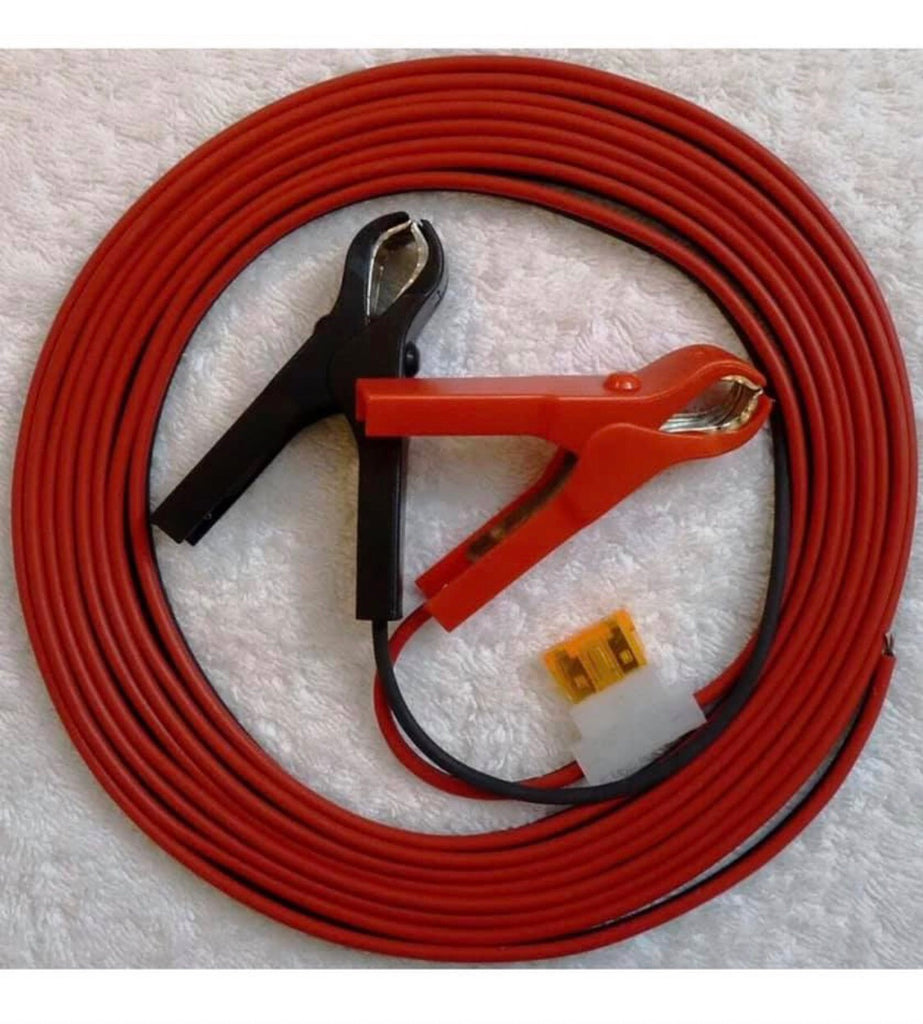

1 x 4m cable (c/w fuse and quality large battery alligator clips) to connect between the battery and the controller.
Tools are not included.
Specifications
size cm Weight
50W 67 x 52 x 2.5 4kg
50w Panel
Maximum power voltage: 18.68v
Maximum power current: 2.67A
Open circuit voltage: 22.32V
Short circuit current: 2.81A
Power allowance range: +/-5%
High efficiency premium solar panel
90cm cable attached to the panel
Low degradation. Power output warranty: 5 year-95% 10 year-90% 25 year-80%
Strong anodized aluminium frame
Weatherproof
Works in low light, cloudy conditions and in-doors (facing the sun)
High transmittance low iron tempered glass with enhanced stiffness and impact resistance
IP65 waterproof connection box

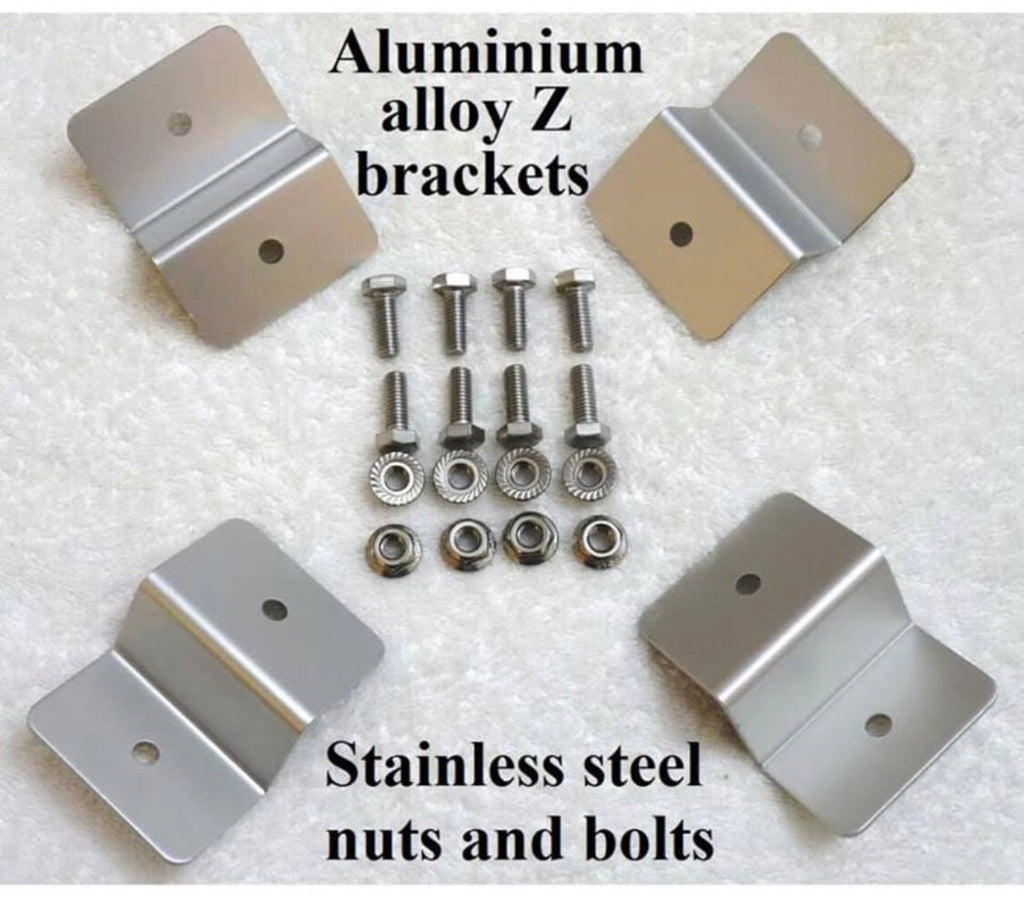

Optional Aluminium alloy strong mounting set of 4

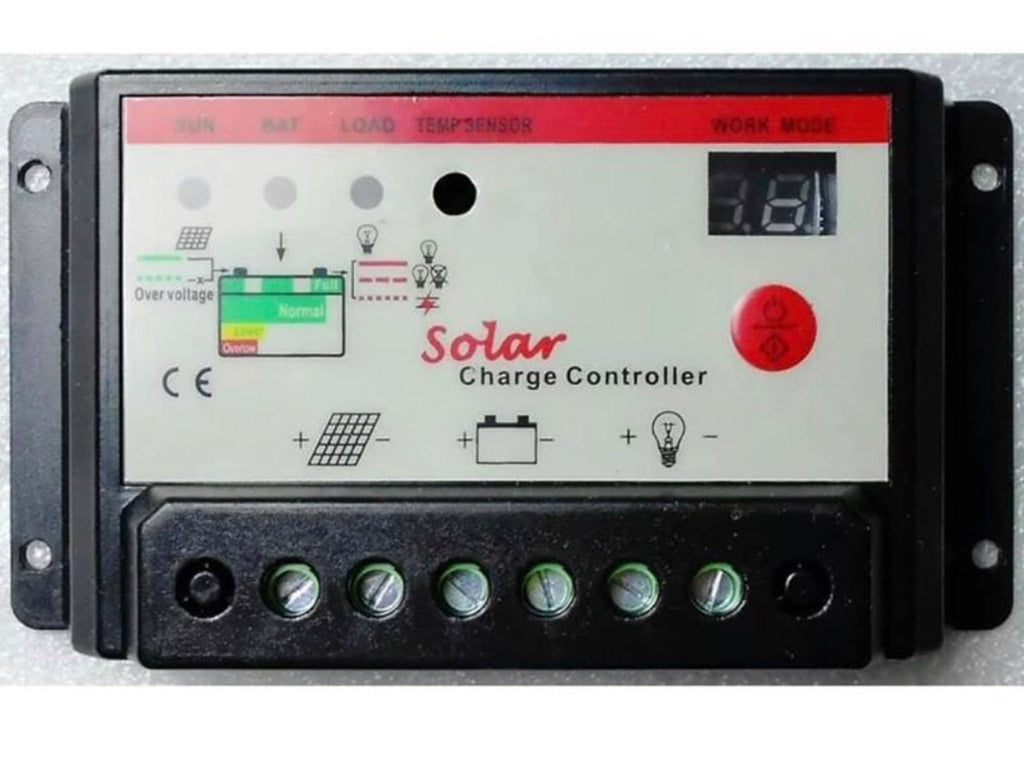

10A Advance Pulse Width Modulation (PWM) Charge controller:
* Automatic 12v/24v recognition (need 2 panels to run 24v system)
* Fully 4 stage PWM charge management
* Day/night recognition
* Dual mosfet reverse current protection
* Protection from over-charging, deep-discharging and reverse connection from both solar panel and battery
* Protection from short circuit and over current
* LED indicator to show charging/fault/battery status/load status etc
* LED digital display to show the load work mode and status
* Self-consumption: 10mA or less
* Working temperature: -35C to 60C
* Working Humidity : 10% to 90% RH
* Size: 14 x 7.5 x 3cm
* Weight: 180 g
* Terminals for wire up to 6mm2
